Product Description:

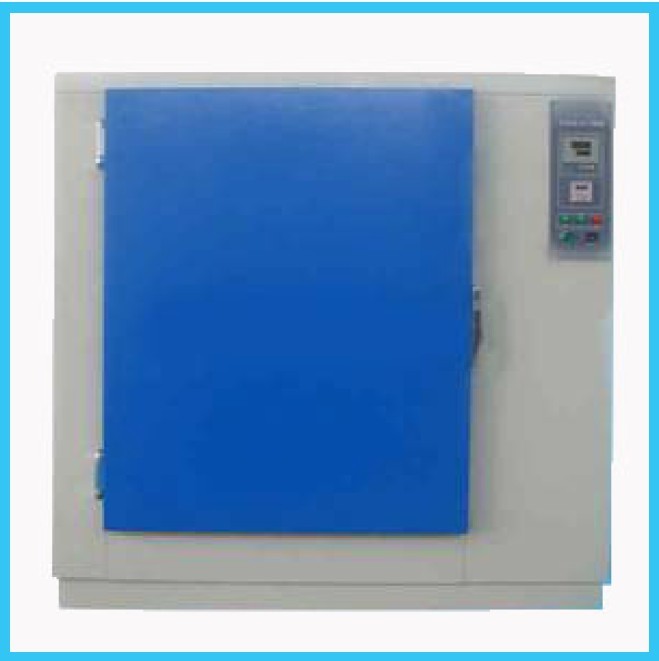

WG Series High Temperature Test Box
※ Applies to instruments, meters, electrical products, materials, medicine and other scientific research and production units.
※ Advanced duct design to ensure uniformity of the Box.
※ Novel structure, stainless steel Liner.
※ Use advanced computer devices, PID temperature control parameters of the wet, With over-temperature protection.
※ Product Standard: GB10586-89.
|
Model |
WG02B |
WG03B |
WG05B |
|
Temperature |
Room temperature +10～+200℃ |
|
Degree of temperature fluctuation |
±1℃ |
|
Temperature uniformity |
±2℃ （Are empty from the tank wall 1 / 6 Test） |
|
Studio Size (mm) |
D450×W450×H450 |
D650×W650×H700 |
D700×W800×H900 |
|
Power (Kw) |
3Kw |
5Kw |
8Kw |
|
Case Material |
ST12 carbon steel plate，Surface spray plastic treatment |
|
Liner Material |
High-quality stainless steel plate |
|
Insulation |
High-temperature high-quality glass fiber cotton |
|
Heaters |
High-quality nickel-branded wire electric heater |
|
Controller |
Intelligent Temperature Controller, PID temperature control,
Self-tuning and the Temperature countdown function |
|
Adjusting |
Forced blast cycle, Bottom blowing, To better solve the temperature field uniformity |
|
Safety Device |
Independent over-temperature protection |
|
Ventilation device |
Air interchanger: Rear Adjustable loophole |
|
Install Power Supply |
380 V, 220V±22V, 50Hz |
|
Accessories |
Standard shelf two-story, Is not less than 30 kg load on each floor, Some observers windows, a set of technical information |
|
Delivery |
30 days |
|
Notes |
Equipment, machine warranty for one year |
